malloc.h File Reference

#include "globals.h"
#include "pool.h"
#include <stdint.h>
#include <libiberty/splay-tree.h>
#include <stdarg.h>

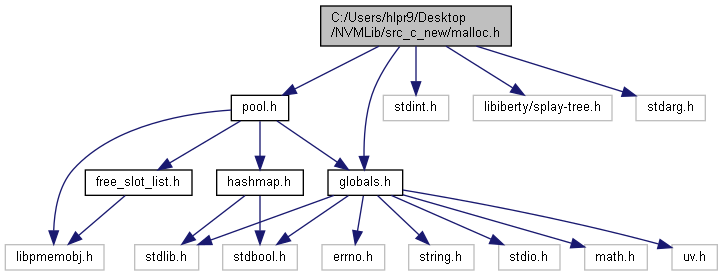

Include dependency graph for malloc.h:

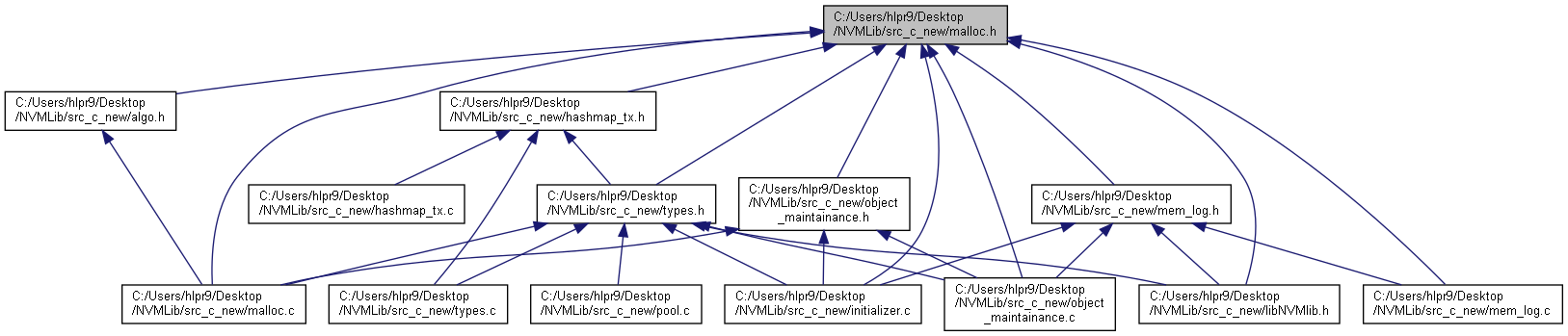

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	MEMoid_st
	The struct that stores the memptr for the object. More...
struct	addr2memoid_key
	The structure used in spaly_tree which used for getting MEMoid from the memory address. More...

Macros
#define	__FILENAME__   (strrchr(__FILE__, '/') ? strrchr(__FILE__, '/') + 1 : __FILE__)
#define	NUMARGS(...)   (sizeof((int[]){0, ##__VA_ARGS__})/sizeof(int)-1)
#define	memalloc(size, ...)   _memalloc(size, __FILENAME__, __func__, __LINE__, NUMARGS(__VA_ARGS__), ##__VA_ARGS__)
	The user API for requesting allocation of object. More...
#define	KEY_FIRST(key)   (_key_get_first(key))
#define	KEY_LAST(key)   (_key_get_last(key))
#define	memfree(o)   _memfree((o).oidkey)
	The user API to free the memory space allocated. More...

Typedefs
typedef struct MEMoid_st	MEMoid
	The struct that stores the memptr for the object. More...
typedef uint64_t	MEMoidKey
	The key of the HashTable that contains <MEMoidKey, MEMoid>. More...
typedef struct addr2memoid_key	addr2memoid_key
	The structure used in spaly_tree which used for getting MEMoid from the memory address. More...

Enumerations
enum	splay_comp { cmp_node, cmp_addr }

Functions
uint64_t	allot_first_free_offset_pool (uint64_t pool_id, size_t size)
	Allocates first free memory chunk of the given size in the given pool specified by pool_id. More...
MEMoid	allot_first_free_offset (size_t size)
	Allocates the first free memory chunk of the given size. More...
MEMoidKey	_memalloc (size_t size, const char *file, const char *func, const int line, int num_args,...)
	Allocates the memory requested and returns a MEMoidKey. More...
void *	get_memobj_direct (MEMoid obj)
	The function to return the actual memptr for a given MEMoid object. More...
void *	_key_get_last (MEMoidKey key)
void *	_key_get_first (MEMoidKey key)
void	_memfree (MEMoidKey oidkey)
	The fucntion to free the allocated memory location. More...
void	init_splay ()

Variables
splay_tree	addr2MemOID_read
splay_tree	addr2MemOID_write
static const MEMoid	MEMOID_NULL = { 0, 0, 0 }
	Just a dummy obj. More...

Macro Definition Documentation

__FILENAME__

#define __FILENAME__   (strrchr(__FILE__, '/') ? strrchr(__FILE__, '/') + 1 : __FILE__)

Definition at line 56 of file malloc.h.

KEY_FIRST

#define KEY_FIRST

(

key

)

(_key_get_first(key))

Definition at line 89 of file malloc.h.

KEY_LAST

#define KEY_LAST

(

key

)

(_key_get_last(key))

Definition at line 90 of file malloc.h.

memalloc

#define memalloc	(		size,
			...
	)		_memalloc(size, __FILENAME__, __func__, __LINE__, NUMARGS(__VA_ARGS__), ##__VA_ARGS__)

The user API for requesting allocation of object.

Example

LIB_TOID(int) array = LIB_TOID(int)memalloc(10 * sizeof(int));  // allocated an integer array of size 10.

Parameters

size	the size of memory that needs to be allocated.
which_ram	(optional): the RAM in which the user wants to place the object

Returns

MEMoidKey that the user needs to typecast into LIB_TOID.

Note

The API interface and functionality is almost exactly similar to that of malloc().

See also

_memalloc() __memalloc()

Definition at line 79 of file malloc.h.

memfree

#define memfree

(

o

)

_memfree((o).oidkey)

The user API to free the memory space allocated.

Example

memfree(array);  // freed the array that had bee allocated

Parameters

LIB_TOID

object: the object that was return by memalloc() during allocation.

Note

The API interface and functionality is almost exactly similar to that of free().

See also

_memfree() nvm_free()

Definition at line 109 of file malloc.h.

NUMARGS

#define NUMARGS

(

...

)

(sizeof((int[]){0, ##__VA_ARGS__})/sizeof(int)-1)

Definition at line 57 of file malloc.h.

Typedef Documentation

addr2memoid_key

typedef struct addr2memoid_key addr2memoid_key

The structure used in spaly_tree which used for getting MEMoid from the memory address.

MEMoid

typedef struct MEMoid_st MEMoid

The struct that stores the memptr for the object.

MEMoidKey

typedef uint64_t MEMoidKey

The key of the HashTable that contains <MEMoidKey, MEMoid>.

This is the library level representation of pointer to the object.

Definition at line 49 of file malloc.h.

Enumeration Type Documentation

splay_comp

enum splay_comp

Enumerator
cmp_node
cmp_addr

Definition at line 110 of file malloc.h.

Function Documentation

_key_get_first()

void* _key_get_first

(

MEMoidKey

key

)

Definition at line 384 of file malloc.c.

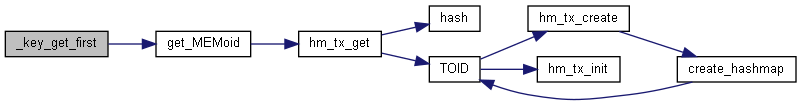

Here is the call graph for this function:

_key_get_last()

void* _key_get_last

(

MEMoidKey

key

)

Definition at line 392 of file malloc.c.

Here is the call graph for this function:

_memalloc()

MEMoidKey _memalloc	(	size_t	size,
		const char *	file,
		const char *	func,
		const int	line,
		int	num_args,
			...
	)

Allocates the memory requested and returns a MEMoidKey.

Parameters

size	the size of the object that needs to be allocated.
file	the file where the requested object is defined.
func	the function where the requested object is defined.
line	the line number where the requested object is defined.
which_ram	(optional): the RAM in which the allocation must happen.

Returns

The MEMoidkey object after allocation is completed.

See also

__memalloc() memalloc()

Attention

This function is responsible for checking if the requested object is present in NVRAM from the previous run (to ensure crash consistency).

It has to add the created objects into object_maintainance table, type_table and splay_tree.

Definition at line 202 of file malloc.c.

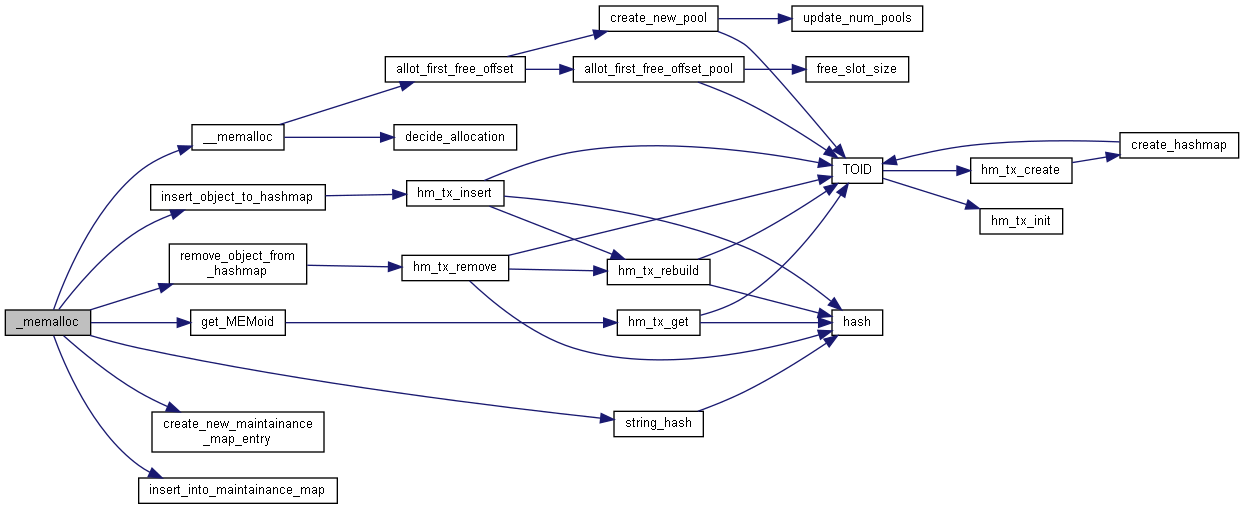

Here is the call graph for this function:

_memfree()

void _memfree

(

MEMoidKey

oidkey

)

The fucntion to free the allocated memory location.

Parameters

oidkey

the MEMoidKey of the object whose memory needs to be freed.

Returns

Nothing.

Note

This function doesn't call nvm_free() or free() by itself, instead it enques the deletion task for the deletion thread to take care of it.

Definition at line 358 of file malloc.c.

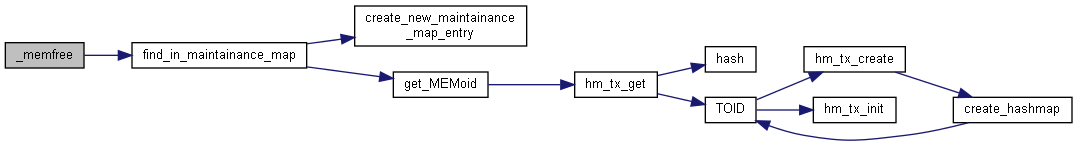

Here is the call graph for this function:

allot_first_free_offset()

MEMoid allot_first_free_offset

(

size_t

size

)

Allocates the first free memory chunk of the given size.

Parameters

size	the size of memory that needs to be allocated.

Returns

MEMoid object.

Attention

This function is responsible to create a new pool iff any of the previous pools are insufficient for the asked size.

See also

allot_first_free_offset_pool()

Definition at line 104 of file malloc.c.

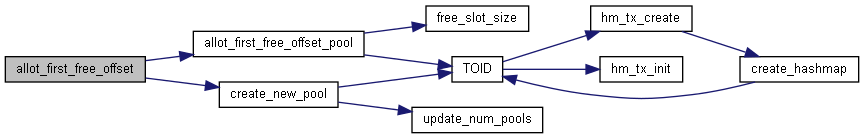

Here is the call graph for this function:

allot_first_free_offset_pool()

uint64_t allot_first_free_offset_pool	(	uint64_t	pool_id,
		size_t	size
	)

Allocates first free memory chunk of the given size in the given pool specified by pool_id.

Parameters

pool_id	the ID of the pool where the allocation needs to be made.
size	the size of memory that needs to be allocated.

Returns

The offset of the memory chuck allocated. This offset is from the first address of the pool.

Note

This is an internal function. It is not exposed to other files.

See also

allot_first_free_offset()

Definition at line 48 of file malloc.c.

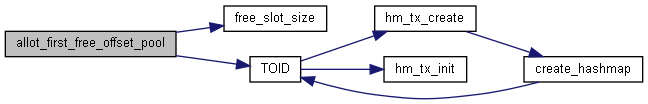

Here is the call graph for this function:

get_memobj_direct()

void* get_memobj_direct

(

MEMoid

oid

)

The function to return the actual memptr for a given MEMoid object.

Parameters

oid	the MEMoid object.

Returns

The memory address represented by oid.

Definition at line 316 of file malloc.c.

Here is the call graph for this function:

init_splay()

void init_splay

(

)

Definition at line 442 of file malloc.c.

Here is the call graph for this function:

Variable Documentation

addr2MemOID_read

splay_tree addr2MemOID_read

Definition at line 25 of file malloc.h.

addr2MemOID_write

splay_tree addr2MemOID_write

Definition at line 26 of file malloc.h.

MEMOID_NULL

const MEMoid MEMOID_NULL = { 0, 0, 0 }

static

Just a dummy obj.

Definition at line 52 of file malloc.h.
