#include <stddef.h>
#include <stdint.h>
#include <libpmemobj.h>
#include "malloc.h"

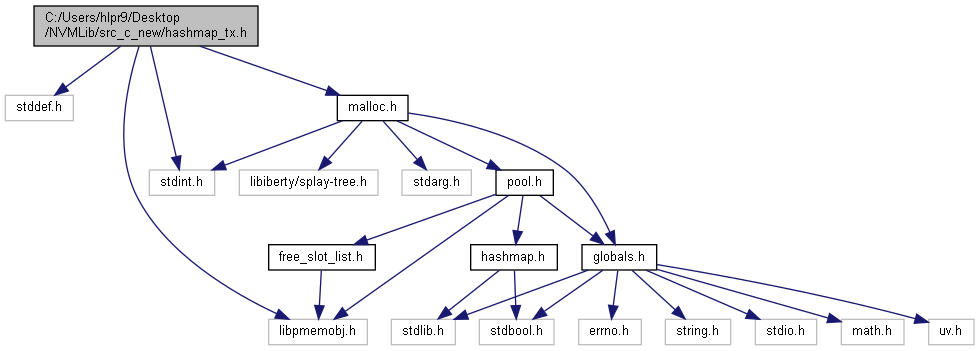

Include dependency graph for hashmap_tx.h:

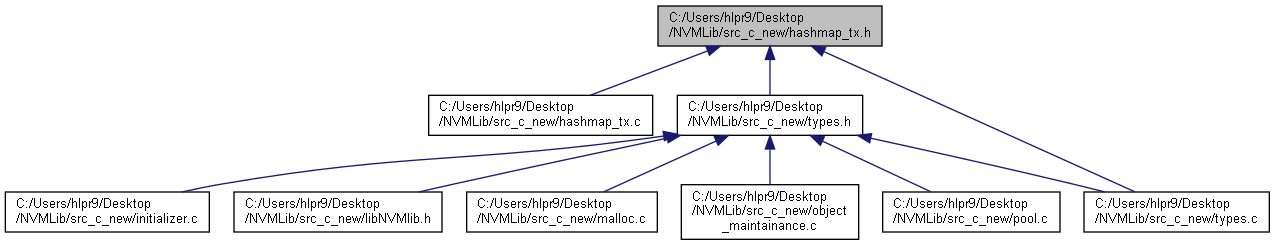

This graph shows which files directly or indirectly include this file:

Data Structures
struct	hashmap_args

struct	entry

struct	buckets

struct	hashmap_tx

Macros
#define	HASHMAP_TX_TYPE_OFFSET 1004

Typedefs
typedef struct entry	entry

typedef struct buckets	buckets

typedef struct hashmap_tx	hashmap_tx

Enumerations
enum	hashmap_cmd { HASHMAP_CMD_REBUILD, HASHMAP_CMD_DEBUG }

Functions
	POBJ_LAYOUT_BEGIN (types_tab)

	POBJ_LAYOUT_ROOT (types_tab, struct hashmap_tx)

	POBJ_LAYOUT_TOID (types_tab, struct buckets)

	POBJ_LAYOUT_TOID (types_tab, struct entry)

	POBJ_LAYOUT_END (types_tab)

int	hm_tx_check (PMEMobjpool *pop, TOID(struct hashmap_tx) hashmap)
	Checks if specified `persistent` object is an instance of `hashmap`. More...

int	hm_tx_create (PMEMobjpool pop, TOID(struct hashmap_tx) map, void *arg)
	Allocates a new `hashmap`. More...

int	hm_tx_init (PMEMobjpool *pop, TOID(struct hashmap_tx) hashmap)
	Recovers `hashmap` state. More...

int	hm_tx_insert (PMEMobjpool *pop, TOID(struct hashmap_tx) hashmap, uint64_t key, MEMoid value)
	Inserts the specified `value` into the `hashmap`. More...

MEMoid	hm_tx_remove (PMEMobjpool *pop, TOID(struct hashmap_tx) hashmap, uint64_t key)
	Removes specified `value` from the `hashmap`. More...

MEMoid	hm_tx_get (PMEMobjpool *pop, TOID(struct hashmap_tx) hashmap, uint64_t key)
	Checks whether specified `key` is in the `hashmap` and retries the `value` associated with it. More...

int	hm_tx_lookup (PMEMobjpool *pop, TOID(struct hashmap_tx) hashmap, uint64_t key)
	Checks whether specified `key` exists in the `hashmap`. More...

int	hm_tx_foreach (PMEMobjpool pop, TOID(struct hashmap_tx) hashmap, int(cb)(uint64_t key, MEMoid value, void arg), void arg)
	Calls a given `callback` for every element in the `hashmap`. More...

size_t	hm_tx_count (PMEMobjpool *pop, TOID(struct hashmap_tx) hashmap)
	Returns number of elements in the `hashmap`. More...

int	hm_tx_cmd (PMEMobjpool *pop, TOID(struct hashmap_tx) hashmap, unsigned cmd, uint64_t arg)
	Executes a command for `hashmap`. More...

void	hm_tx_debug (PMEMobjpool pop, TOID(struct hashmap_tx) hashmap, FILE out)
	Prints complete hashmap state. More...

Macro Definition Documentation

◆ HASHMAP_TX_TYPE_OFFSET

#define HASHMAP_TX_TYPE_OFFSET 1004

Definition at line 20 of file hashmap_tx.h.

Typedef Documentation

◆ buckets

typedef struct buckets buckets

◆ entry

typedef struct entry entry

◆ hashmap_tx

typedef struct hashmap_tx hashmap_tx

Enumeration Type Documentation

◆ hashmap_cmd

enum hashmap_cmd

Enumerator
HASHMAP_CMD_REBUILD
HASHMAP_CMD_DEBUG

Definition at line 13 of file hashmap_tx.h.

Function Documentation

◆ hm_tx_check()

int hm_tx_check	(	PMEMobjpool *	pop,
		TOID(struct hashmap_tx)	hashmap
	)

Checks if specified persistent object is an instance of hashmap.

Parameters

PMEMobjpool	the `pool` where the `hashmap` is stored.
hashmap	the typed hashmap which needs to be initialised.

Returns: 0: if it is a hashmap; 1: otherwise

Definition at line 463 of file hashmap_tx.c.

◆ hm_tx_cmd()

int hm_tx_cmd	(	PMEMobjpool *	pop,
		TOID(struct hashmap_tx)	hashmap,
		unsigned	cmd,
		uint64_t	arg
	)

Executes a command for hashmap.

Available commands are: HASHMAP_CMD_REBUILD and HASHMAP_CMD_DEBUG

Parameters

PMEMobjpool	the `pool` where the `hashmap` is stored.
hashmap	the typed hashmap which needs to be initialised.
cmd	the command to be executed.
arg	the arguments for the command.

Returns: 0: on successful execution; -EINVAL: otherwise

Definition at line 480 of file hashmap_tx.c.

Here is the call graph for this function:

◆ hm_tx_count()

size_t hm_tx_count	(	PMEMobjpool *	pop,
		TOID(struct hashmap_tx)	hashmap
	)

Returns number of elements in the hashmap.

Parameters

PMEMobjpool	the `pool` where the `hashmap` is stored.
hashmap	the typed hashmap which needs to be initialised.

Returns: Number of elements in the hashmap.

Definition at line 401 of file hashmap_tx.c.

◆ hm_tx_create()

int hm_tx_create	(	PMEMobjpool *	pop,
		TOID(struct hashmap_tx) *	map,
		void *	arg
	)

Allocates a new hashmap.

Parameters

PMEMobjpool	the `pool` where the `hashmap` would be stored.
hashmap	the typed hashmap which needs to be initialised.
arg	additional arguments if necessary

Returns: 0: on successful creation; -1: on failure.

See also: create_hashmap()

Definition at line 433 of file hashmap_tx.c.

Here is the call graph for this function:

◆ hm_tx_debug()

void hm_tx_debug	(	PMEMobjpool *	pop,
		TOID(struct hashmap_tx)	hashmap,
		FILE *	out
	)

Prints complete hashmap state.

This function is used for debugging purposes.

Parameters

PMEMobjpool	the `pool` where the `hashmap` would be stored.
hashmap	the typed hashmap which needs to be initialised.
out	the `file desciptor` for where the output needs to be recorded.

Returns: Nothing

Note: The out paramater can be stdout and stderr too.

Definition at line 314 of file hashmap_tx.c.

Here is the call graph for this function:

◆ hm_tx_foreach()

int hm_tx_foreach	(	PMEMobjpool *	pop,
		TOID(struct hashmap_tx)	hashmap,
		int()(uint64_t key, MEMoid value, void arg)	cb,
		void *	arg
	)

Calls a given callback for every element in the hashmap.

Parameters

PMEMobjpool	the `pool` where the `hashmap` is stored.
hashmap	the typed hashmap which needs to be initialised.
cb	the `calback` function.
arg	additional arguments for the `callback` function

Returns: The return value of the callback function.

Definition at line 281 of file hashmap_tx.c.

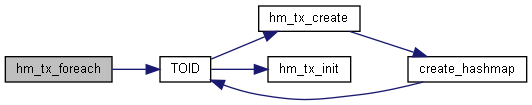

Here is the call graph for this function:

◆ hm_tx_get()

MEMoid hm_tx_get	(	PMEMobjpool *	pop,
		TOID(struct hashmap_tx)	hashmap,
		uint64_t	key
	)

Checks whether specified key is in the hashmap and retries the value associated with it.

Parameters

PMEMobjpool	the `pool` where the `hashmap` is stored.
hashmap	the typed hashmap which needs to be initialised.
key	the `key` for the `value` being inserted. It will be used to calculate the `hash`.

Returns: the value associated with the key.; MEMOID_NULL upon failure or if not such key existed

Definition at line 349 of file hashmap_tx.c.

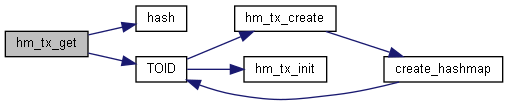

Here is the call graph for this function:

◆ hm_tx_init()

int hm_tx_init	(	PMEMobjpool *	pop,
		TOID(struct hashmap_tx)	hashmap
	)

Recovers hashmap state.

Called after pmemobj_open().

Parameters

PMEMobjpool	the `pool` where the `hashmap` is stored.
hashmap	the typed hashmap which needs to be initialised.

See also: init_types_table()

Definition at line 415 of file hashmap_tx.c.

◆ hm_tx_insert()

int hm_tx_insert	(	PMEMobjpool *	pop,
		TOID(struct hashmap_tx)	hashmap,
		uint64_t	key,
		MEMoid	value
	)

Inserts the specified value into the hashmap.

Parameters

PMEMobjpool	the `pool` where the `hashmap` is stored.
hashmap	the typed hashmap which needs to be initialised.
key	the `key` for the `value` being inserted. It will be used to calculate the `hash`.
value	the `value` that is supposed to be inserted.

Returns: 0: if successful; 1: if value already existed; -1: if the insertion failed

Warning: If the key already exists in the hashmap, then the value provided is not inserted.

Definition at line 164 of file hashmap_tx.c.

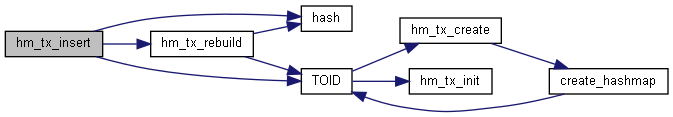

Here is the call graph for this function:

◆ hm_tx_lookup()

int hm_tx_lookup	(	PMEMobjpool *	pop,
		TOID(struct hashmap_tx)	hashmap,
		uint64_t	key
	)

Checks whether specified key exists in the hashmap.

Parameters

PMEMobjpool	the `pool` where the `hashmap` is stored.
hashmap	the typed hashmap which needs to be initialised.
key	the `key` for the `value` being inserted. It will be used to calculate the `hash`.

Returns: 1: if the key exists; 0: otherwise

See also: hm_tx_get()

Definition at line 377 of file hashmap_tx.c.

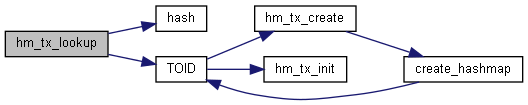

Here is the call graph for this function:

◆ hm_tx_remove()

MEMoid hm_tx_remove	(	PMEMobjpool *	pop,
		TOID(struct hashmap_tx)	hashmap,
		uint64_t	key
	)

Removes specified value from the hashmap.

Parameters

PMEMobjpool	the `pool` where the `hashmap` is stored.
hashmap	the typed hashmap which needs to be initialised.
key	the `key` for the `value` being inserted. It will be used to calculate the `hash`.

Returns: the value associated with the key deleted upon success; MEMOID_NULL upon failure or if not such key existed

Note: This function does call hm_tx_rebuild() if the the number of elements in the hashmap are less that number of buckets.

Definition at line 224 of file hashmap_tx.c.

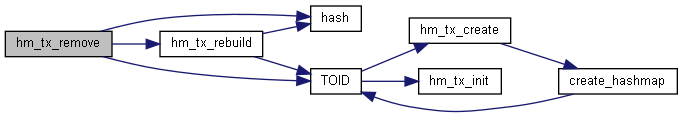

Here is the call graph for this function:

◆ POBJ_LAYOUT_BEGIN()

POBJ_LAYOUT_BEGIN ( types_tab )

◆ POBJ_LAYOUT_END()

POBJ_LAYOUT_END ( types_tab )

◆ POBJ_LAYOUT_ROOT()

POBJ_LAYOUT_ROOT	(	types_tab	,
		struct hashmap_tx
	)

◆ POBJ_LAYOUT_TOID() [1/2]

POBJ_LAYOUT_TOID	(	types_tab	,
		struct buckets
	)

◆ POBJ_LAYOUT_TOID() [2/2]

POBJ_LAYOUT_TOID	(	types_tab	,
		struct entry
	)
